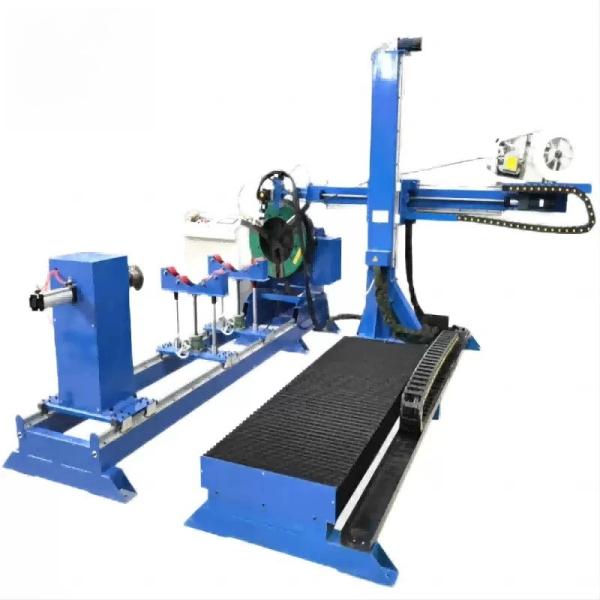

PLC Controlled Automatic Flange Welder Machine FWM-100

Product Categories

Foshan Olang Intelligent Equipment Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: PLC Controlled Automatic Flange Welder Machine FWM100
Brand: Olang
Price: 1 USD

Brand Name : Olang

Model Number : OL-18

Certification : ISO

Place of Origin : Foshan City ,China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 unit/month

Delivery Time : 15-30days

Packaging Details : Wooden Case Packing

Chuck center height : 380mm

Model : FWM-100

Welding Head Vertical Adjustment : ±15mm

Welding Speed : 0.5-2m/min

Welding Diameter Range : DN50-DN1000

Welding Head Rotation Angle : 0-360 degrees

Contact Now

High Efficiency Automatic Flange Welding Machine with PLC producing equipment

Product characteristics:

High Precision Welding: Provides precise welding control, ensuring high-quality and consistent weld joints.
Automated Operation: Reduces manual intervention, improving welding efficiency, ideal for large-scale production.
Versatility: Capable of welding flanges of various sizes and types, adaptable to different industrial requirements.
Powerful Welding Capacity: Supports heavy-duty and high-strength welding tasks, suitable for demanding industrial applications.

TECHNICALPARAMETER

Model	OL-A-FLG-400	OL-A-FLG-1500	OL-A-FLG-3000	OL-A-FLG-6000
welding application	Pipe-to-Pipe Welding ,Pipe-to-Flange Welding,Elbow-to-Flange Welding,Pipe-to-Tee Welding
welding power supply	YC-400TX4	YC-400TX4	YC-400TX4	YC-400TX4
welding torch working distance	400mm	1500mm	3000mm	6000mm
work torch angle	0-90 degree	0-90 degree	0-90 degree	0-90 degree
applicable thickness	0.8-3mm	0.8-3mm	0.8-3mm	0.8-3mm
Positional center hole	170( Accept customization )	170( Accept customization )	170( Accept customization )	170( Accept customization )
Flange OD	20-500	20-500	20-500	20-500
Chuck center height	380mm	380mm	380mm	380mm
Elbow rotation radius	<380	<380	<380	<380
swinger	Swing Range: 0-20mm Swing Speed: 0-20mm/min Dwell Time: 0-5 seconds
wire feeding mamchine	Compatible with Wire Diameters: 0.8mm, 1.0mm, 1.2mm, 1.6mm
Power supply	15kw/380v/50hz

PLC Controlled Automatic Flange Welder Machine FWM-100

Application

Aerospace and Shipbuilding Industry: Degreasing, degreasing and cleaning, paint removal, rust removal.
Automobile Manufacturing: Degreasing, cleaning of tire molds, removing coatings from galvanized sheets before welding.
Electronics and Semiconductor Industry: Cleaning of silicon wafers.
Marine, Railway, and Bridge Industry: Rust removal, paint removal.
Chemical, Food, and Medical Industries: Cleaning small holes in thin metal filter plates.
Building Cleaning: General cleaning of buildings.
Nuclear Power Plant Reactor Pipe Cleaning: Cleaning of pipes inside nuclear reactor systems.

PLC Controlled Automatic Flange Welder Machine FWM-100
Factory work shop

Package:

Exhibiton:

Certificate

Product Tags:

Automatic Flange Welder Machine
